Part 1 The collector's models years. Type 1 to Type 7
Part 2 The user's models years. Type 8 to Type 19
This I intend to be a living document. I will update it as new or better photos and features becomes known or available.
Thanks for your help in this matter.
Most features are primarily as found on the No 4 Smoother planes. The No 5, 6, 7 and 8 planes being longer had their plane Nos cast at the heel versus the toe when Bailey appeared (in part 2).
No 1 is excluded, No 2 and 3 follow pretty well the same features except were the lack of room precludes some casting marks etc.
No 4-1/2, 5-1/4 and 5-1/2 falls somewhere in between, as they were introduced later along this type study.
Compiled from various sources on line, Notably from Walter, Leach and Sutherland. Pics are mine except as noted. Line drawings from Walter's book.
Text is based on original(s) with my own observations added. Rebuilt and updated Jul 16
Read this before using...
Wow, hard to believe I started this back in April...
TYPE 1 Boston Bailey 1867-1869
Trademark on Iron & Cap iron
Pics from Ebay
Solid brass Adj. nut has right hand tread. Early adj. nut may be two pieces construction. Name WOODS is always removed
Pic from Ebay
Lever cap is solid underneath and has a Banjo shaped spring
Pic from Ebay
Sides of planes are higher with the center of the round more toward the front than on later models.
Pic from Ebay
Bead edge at base of Rosewood knob
Pic from NH Plane parts
Rosewood handle (tote) has a distinct & graceful shape
NO Model Nos cast on bed
Top corners of frog are rounded
Round head screws (have a dome to it, later they would be flat)
hold the frog. You can see the screws in question on frog pic above
No 5 to No 8 sizes have squared edge on front of raised receiver for tote
Notice square receiver front under handle (tote)
This is a No 8 Type 2
Frog receiver is shaped like the letter I
Fillet cast on each side of high cross rib in front of mouth
TYPE 2 Stanley 1869-1872
All features of Type 1 except;
Early models of this type do not have Bailey's name on adj. nut
Most models of this type have Bailey's name on adj. nut
Spring under lever cap is now rectangular
à
No 4 Type 2
Pics from Ebay
No 8 Type 2, notice the bead detail on the front knob
Pics from Ebay
TYPE 3 Stanley 1872-1873
Major changes
All features of Type 2 except;
New trademark on irons
Pic from Bob Kaune
Center of the rounded sides is now further back
Special frog piece attached to a vertical rib
Probably designed by Bailey because it is similar to his "Victor' planes in Hartford.
A total redesign of the frog, where it became smaller and is held to the bottom casting by a vertical rib between the sides of the casting.
This feature has been observed on sizes from No 3 to No 8 only.
All frog pieces are of the No 3 sizes. This was probably an attempt to make interchangeable parts for most of the bench planes, instead of having a frog sizes to each size of bench planes. A lot of these planes are broken at the vertical rib so it was a weak design and it was soon abandoned.
Whether or not this was an experimental short run production has not been determined., however, enough specimens are known to warrant listing in this study.
This series of pics from Ebay.
Victor variant??
Adj. nut is now recessed. Bailey's patent date are stamped inside
Pic from Ebay
Lever cap now has a recessed back
Old style, solid in the back, on left
New style recessed in back, on right
Pic from Ebay
Fillet eliminated at base of cross rib in front of mouth, rib is now lower
Change in handle design
Major changes
All features of Type 3 except;
They are now equipped with the standard full frog as in type 2
Pic from Ebay
tip of Y lever is no longer rounded
Frog receiver is enlarged but still low and milled low. The number 73 is often cast in bed behind frog receiver is apparently just a foundry's casting code, because No 2 planes of same vintage have the number 71 cast there.
Still No Model's Nos
Pic from NH Plane parts
Flat head cap screw now used to hold the frog. They used to have a domed head, now flat.
Flat top frog screws make their debut
Pic from Ebay
No 5 thru No 8 have rounded edge in front of raised receiver for tote
No 5 Type 5
Notice the round end on the tote receiver in front
Pic from Ebay
TYPE 5 Stanley 1885-1888
Major changes
All features of Type 4 except;
New trademark on irons in later specimen of this type
Pic from Bob Kaune
Model's Nos now cast on toe in front of knob. No 2 thru 8
Notice close spacing
No 5 thru 8 had Model Nos in front also
Pics from Ebay
Top corners frog are no longer rounded, the whole top is rounded
First lateral lever with patent date 2-8-76 and 10-21-84
Type 5 frog
Pic from NH Plane parts
TYPE 6 Stanley 1888-1890
All features of Type 5 except;
New style lateral with circular disk (two pieces construction)
Now with 3 patent dates 2-8-76, 10-21-84 and 7-24-88
Notice Pats Nos and were located
Pic from Ebay
Frog receiver has now two grooves cast across top in line with frog screws holes
Pic from Ebay
Model Number now cast with larger spacing
Bead eliminated at base of knob. Was there since Type 1
Sides wings noticeably lower
Changes in handle design
TYPE 6A Stanley 1891-1892
All features of Type 6 except;
New trademark on iron manufactured in 1892. That is the relocation of the hole from the top to the bottom of the slot
New iron design, where the circular hole is now located toward the cutting edge, instead of the top.
"The improved form of this
Plane Iron renders it unnecessary to detach the Cap Iron, at any time, as the
connecting screw will slide back to the extreme end of the slot in the Plane
Iron, without the danger of falling out. The screw may then be tightened, by a
turn with thumb and finger; and the Cap iron will serve as a convenient handle,
or rest, in whetting or sharpening the cutting edge of the Plane Iron."
There you have it, in all its gory, why the circular hole was re-positioned, after it being at the top of the blade for some 100 years. At least that's how
"Nib" casting marks on castings;
On bed just behind frog receiver
Underneath frog at front
Underneath lever cap
TYPE 7 Stanley 1893-1899
All features of Type 6 except;
Bailey's name and patent dates eliminated from adj. nut and cap iron (see Type 1)
Ad. nut in most planes of this type have left hand threads
Notice this is the first time we mentioned the Left hand threads rotation? That because it remained unchanged at being RH Thread since Type 1
What this mean is that "most" of all the brass recessed nuts with no patent dates should be LH Threads
Trademark with Patent date on all irons in planes of this type.

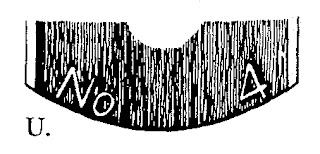

Spacing of number markings (E.G. No 4 to No 4) now one (1) inch
'S' markings on castings. Code letter for Session Foundry, subcontracted by Stanley for their castings. Found on bed, frog and sometimes lever cap, same locations as the raised dot . See Type 6A
END OF PART 1
Next part The users models, Type 8 to 19
